Grid View

Overview

Grial provides a custom grid layout that allows the rendering of bound data through an item template, as opposed to load visual elements directly as a regular Xamarin.Forms Grid. In that regards is similar to a ListView. You can control the number of columns and rows and the size of the items.

GridView Properties

Name	Type	Description
ItemsSource	IEnumerable<object>	The source of items to display with the ItemTemplate.
ItemClickCommand	ICommand	The command to be invoked once an item from GridView is clicked.
ItemTemplate	DataTemplate	Template to render items from ItemsSource.
RowCount	int	Gets or sets the number of rows of the GridView.
ColumnCount	int	Gets or sets the number of columns of the GridView.
ItemWidth	double	Gets or sets the width of the GridView items.
ItemHeight	double	Gets or sets the height of the GridView items.
ItemHeightAuto	bool	Gets or sets if the GridView items are renderer with an automatic height.

The GridView inherits from Grid so it also has other useful properties such as RowSpacing and ColumnSpacing to control the spacing between cells.

tip

You need to define at least RowCount or ColumnCount to fix at least 1 direction and get elements rendered.

If you set both RowCount and ColumnCount some elements might be trimmed.

Samples

Controlling how items are rendered inside the GridView

The GridView allows to set an ItemTemplate to render items from data which gives a lot of flexibility.

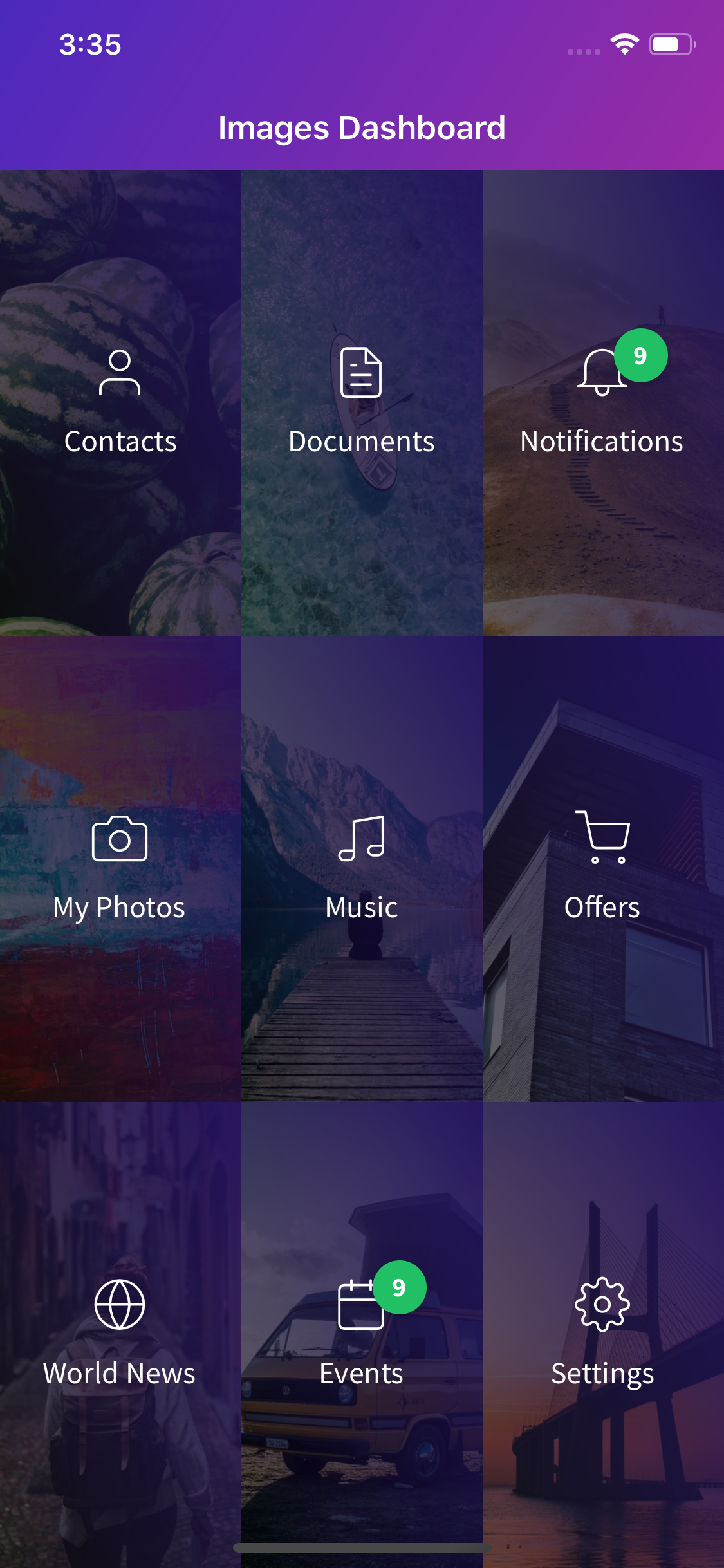

Let's check the following sample. Open ImagesDashboardPage.xaml:

The GridView used on that page has the following settings:

    <grial:GridView
        ColumnCount="3"
        ColumnSpacing="0"
        RowSpacing="0"
        Padding="0"
        VerticalOptions="FillAndExpand"
        ItemsSource="{ Binding Items }"
    >
        <grial:GridView.ItemTemplate>
            <DataTemplate>
                ...
            </DataTemplate>
        </grial:GridView.ItemTemplate>
    </grial:GridView>

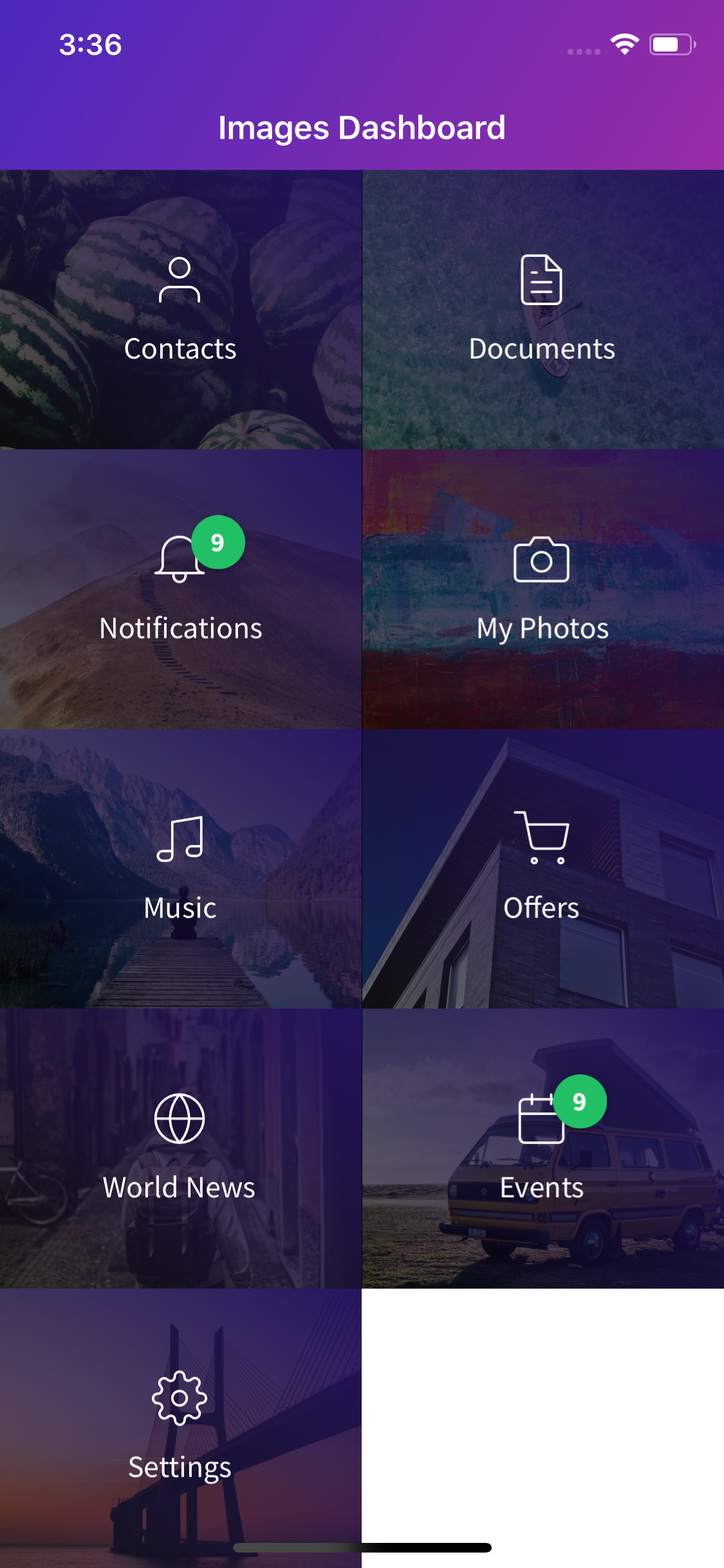

Let's change the GridView to render same data but in 2 columns:

    <grial:GridView
        ColumnCount="2"
        ...
    >
        <grial:GridView.ItemTemplate>
            <DataTemplate>
                ...
            </DataTemplate>
        </grial:GridView.ItemTemplate>
    </grial:GridView>

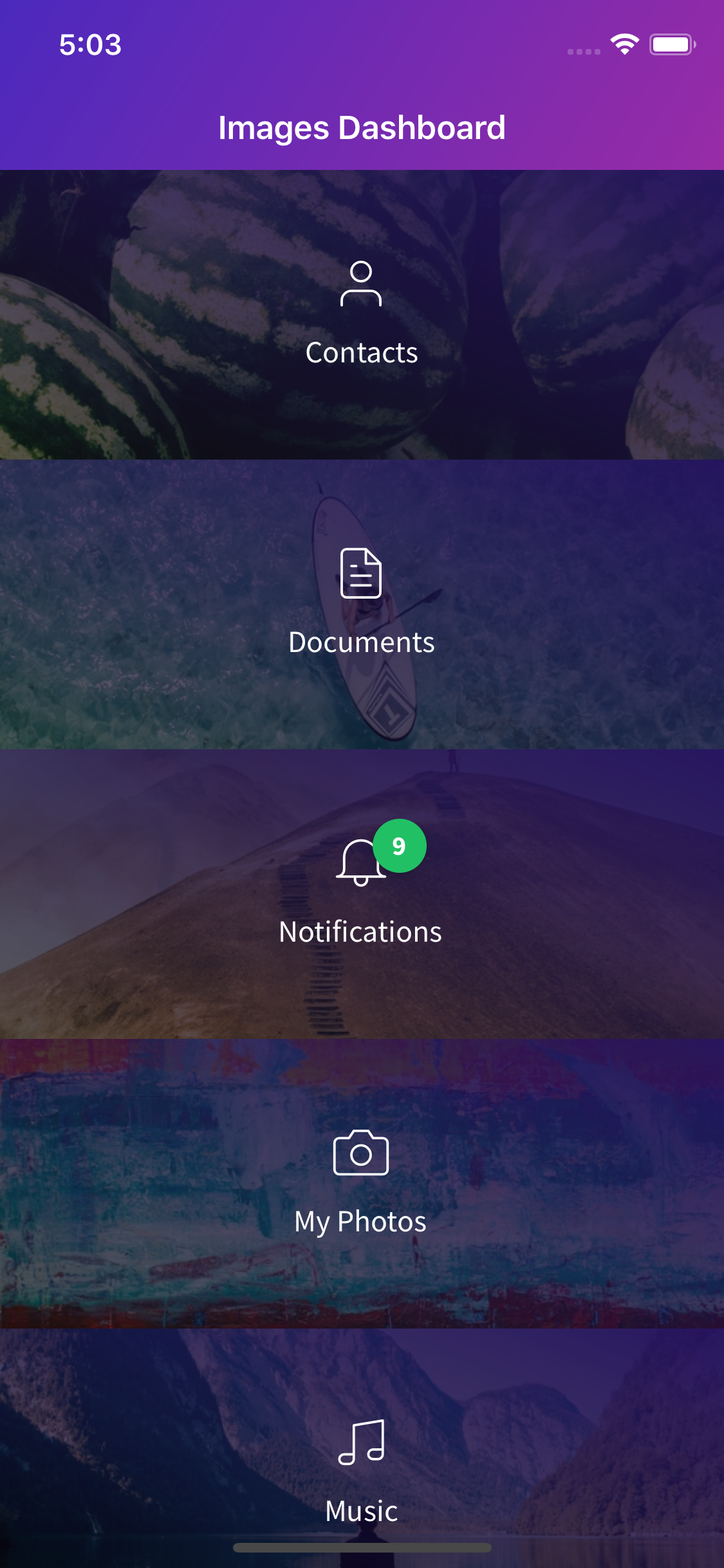

And now with just 1 column:

    <grial:GridView
        ColumnCount="1"
        ...
    >
        <grial:GridView.ItemTemplate>
            <DataTemplate>
                ...
            </DataTemplate>
        </grial:GridView.ItemTemplate>
    </grial:GridView>

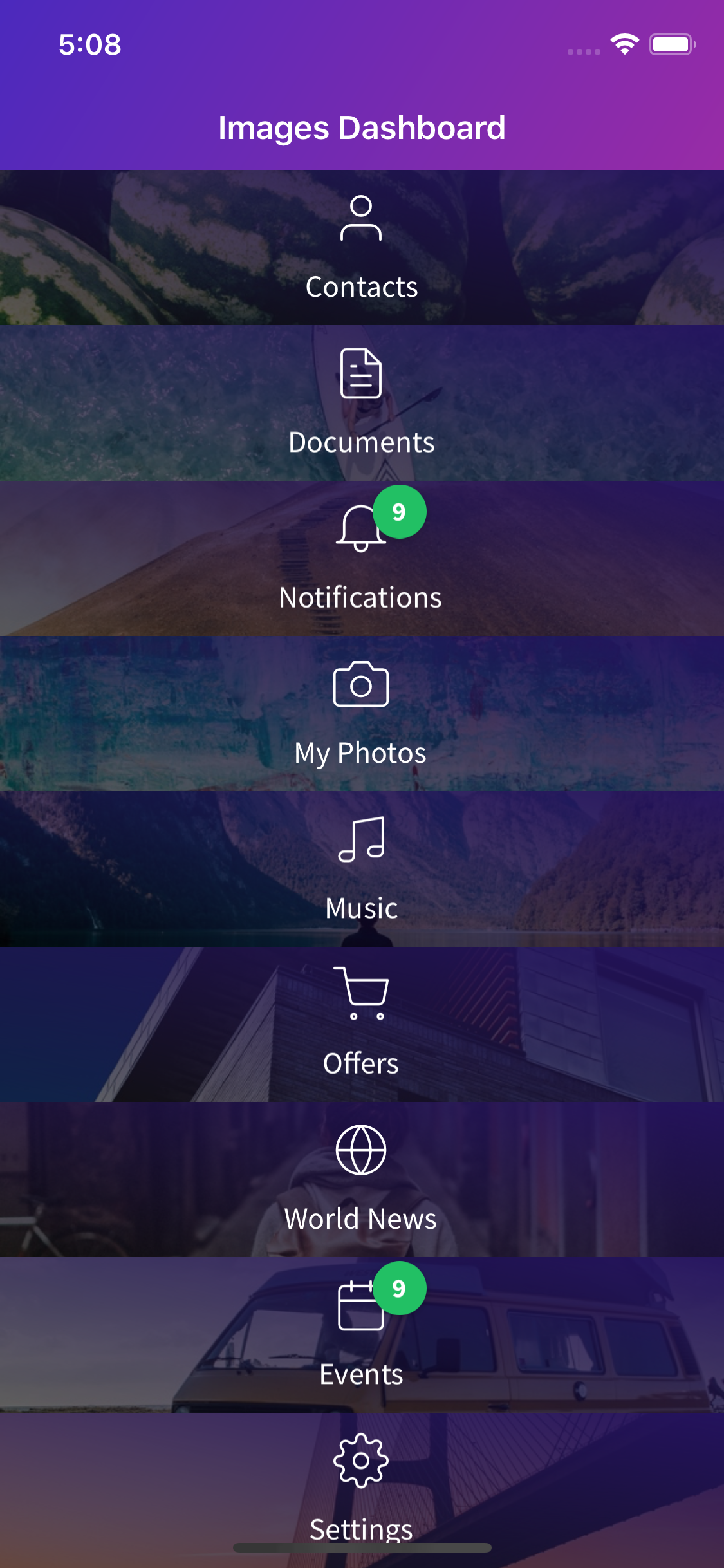

Let's adjust the items height to make it look better:

    <grial:GridView
        ColumnCount="1"
        ItemHeight="150"
        ...
    >
        <grial:GridView.ItemTemplate>
            <DataTemplate>
                ...
            </DataTemplate>
        </grial:GridView.ItemTemplate>
    </grial:GridView>

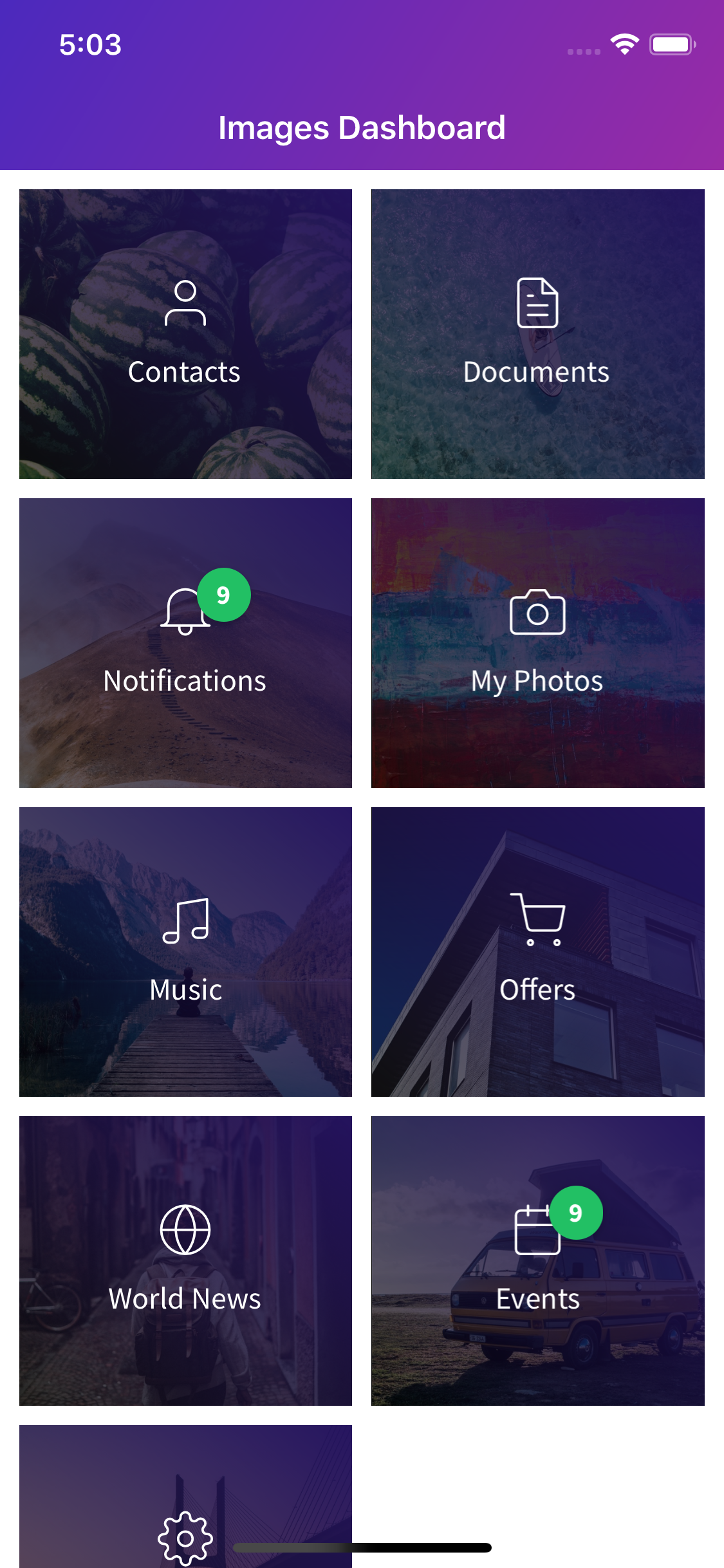

Since the GridView inherits from Grid let's use padding and spacing properties:

    <grial:GridView
        ColumnCount="2"
        ColumnSpacing="10"
        RowSpacing="10"
        Padding="10"
        ...
    >
        <grial:GridView.ItemTemplate>
            <DataTemplate>
                ...
            </DataTemplate>
        </grial:GridView.ItemTemplate>
    </grial:GridView>

Using the ItemClickCommand

You can use commands to bind an event to the related ViewModel using the ItemClickCommand property of the GridView.

In order to use the ItemClickCommand property you need to:

1. Create the command object in the view model and expose it as a property.

    public class MyViewModel
    {
        private readonly Command _itemCommand;

        public MyViewModel()
        {
            _itemCommand = new Command<MyItemType>(ItemAction);
        }

        public List<MyItemType> Items { ... }

        public ICommand ItemCommand => _itemCommand;

        private void ItemAction(MyItemType item)
        {
            // Action logic goes here...
        }
    }

In the example, the property is called `ItemCommand`.

2. Bind the ItemClickCommand to the command property ItemCommand.

<grial:GridView
    ItemClickCommand="{ Binding ItemCommand }"
    ItemsSource="{ Binding Items }">
    <grial:GridView.ItemTemplate>
        <DataTemplate>
            ...
        </DataTemplate>
    </grial:GridView.ItemTemplate>
</grial:GridView>
